• The system tank can work, withstand over 6 bar pressure.

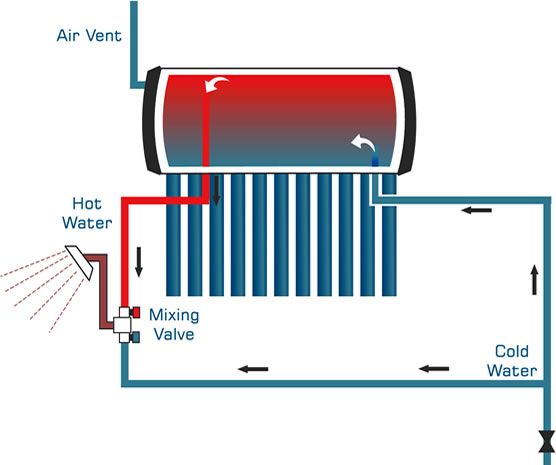

• The hydraulic pressure is same as tap water which would make the bathing very comfortable.
• With the T/P valve, air vent valve makes the system very stable and safe.
• It is using the special heat pipe which makes higher heat transfer into the tank.
• Anti freezing design, no water inside the tubes, so it still work when some tubes broken.
• Luxury and solid bracket which can be mounted both on slope and flat roof.
• Intelligent controller and electric back up heater, works at anytime.

Models	Vacuum Tube	Daily Output (Litre/Day/60C)	Absorber Area	A	B	C	D
150L	Ø58x1800*15Pc	150	1.92	1385	1185	1550	1720
200L	Ø58x1800*20Pc	200	2.57	1760	1560	1550	1720
300L	Ø58x1800*30Pc	300	3.87	2510	2310	1550	1720
300L	Ø58x1800*30Pc	300	3.87	2510	2310	1550	1720

SIZE (mm)

• Outer tank: colorful steel, 0.4mm thick
• Inner Tank: crystal liner 4mm,steel 1.5 mm thick
• Insulation: Polyurethane foam, 50 mm
• Working pressure: 6Bar
• Daily efficiency: ≥55% (≥42% in winter)
• Working temperature: 60°C ~ -35°C
• Vacuum tube specifications: 58mm*1800mm
• Lifetime:15 years
